Description

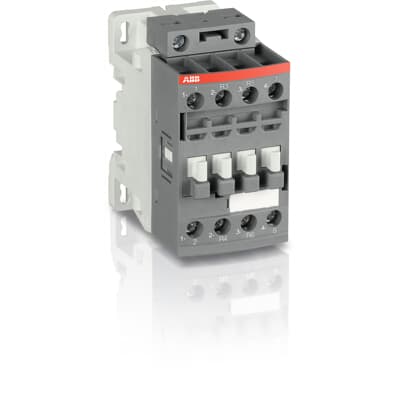

The AF16ZB-22-00-22 is a 4 pole – 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 7.5 kW / 400 V AC (AC-3) and switching power circuits up to 30 A (AC-1) or 30 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Number of poles | 4P |
|---|---|
| Number of main contacts NO | 2 |
| Number of main contacts NC | 2 |
| Number of auxiliary contacts NO | 0 |
| Number of auxiliary contacts NC | 0 |
| Poles and auxiliary contact configuration | 22-00: 4P, 2 main NO + 2 main NC, 0 auxiliary contacts |
| Rated operational voltage | Main circuit 690 V |
| Rated operational current AC-1 | (690 V) 40 °C 30 A; (690 V) 60 °C 30 A; (690 V) 70 °C 26 A |
| Rated operational current AC-3 | (220/230/240 V) 60 °C 18 A; (380/400 V) 60 °C 18 A; (415 V) 60 °C 18 A; (440 V) 60 °C 18 A; (500 V) 60 °C 15 A; (690 V) 60 °C 10.5 A |
| Rated operating power AC-3 (motor power) | (220/230/240 V) 4 kW; (380/400 V) 7.5 kW; (415 V) 9 kW; (440 V) 9 kW; (500 V) 9 kW; (690 V) 9 kW |
| Motor power at 400 V | 7.5 kW (AC-3, 400 V; per long description: ‘controlling motors up to 7.5 kW / 400 V AC (AC-3)’) |
| Rated control circuit voltage | 50 Hz 48 … 130 V; 60 Hz 48 … 130 V; DC operation 48 … 130 V |
| Conventional free-air thermal current | acc. to IEC 60947-4-1, open contactors Θ = 40 °C 35 A |
| Rated insulation voltage | acc. to IEC 60947-4-1 690 V; acc. to UL/CSA 600 V |
| Rated impulse withstand voltage | 6 kV |
| Max electrical switching frequency | (AC-1) 600 cycles per hour |
| Max mechanical switching frequency | 3600 cycles per hour |
| Power loss | at rated operating conditions AC-1 per pole 1.2 W; at rated operating conditions AC-3 per pole 0.35 W |
| Terminal type | Screw terminals (per long description) |
| Product net width | 45 mm |
| Product net depth | 77 mm |
| Product net height | 86 mm |
| Product net weight | 0.31 kg |
| EAN | 3471523124929 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
