Description

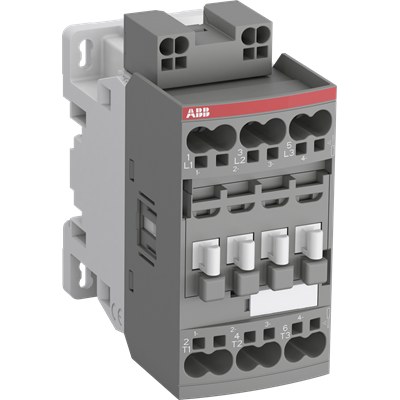

AF26ZB-30-00K-21 24-60V50/60HZ 20-60VDC Contactor. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Control supply voltage | 24-60 V 50/60 Hz; 20-60 V DC |
|---|---|
| Number of poles | 3P |
| Number of main contacts NO | 3 |
| Number of main contacts NC | 0 |
| Number of auxiliary contacts NO | 0 |
| Number of auxiliary contacts NC | 0 |
| Main circuit rated operational voltage | 690 V |
| Rated frequency | Control circuit: 50/60 Hz; Main circuit: 50/60 Hz |
| Conventional free-air thermal current | 50 A at 40 °C, open contactors, per IEC 60947-4-1 |
| Rated operational current AC-1 | 45 A at 40 °C; 40 A at 60 °C; 32 A at 70 °C (all at 690 V) |
| Rated operational current AC-3 | 26 A at 60 °C for 220/230/240 V, 380/400 V, 415 V, 440 V; 23 A at 500 V; 17 A at 690 V |
| Rated operational current AC-3e | same AC-3 values as shown on the page |
| Rated operational current DC-1 | 45 A at 40 °C; 40 A at 60 °C; 32 A at 70 °C (72 V 1/2/3-pole, 110 V 2/3-pole, 220 V 3-pole series) |
| Rated operational current DC-3 | same current set and configurations as DC-1 |
| Motor power at 400 V (AC-3) | 11 kW |
| Standards | IEC/EN 60947-1; IEC/EN 60947-4-1; UL/CSA 60947-4-1; IEC 60077 (parts); EN 50155 (parts); TR CU 001/2011; IEC 61373 |
| Dimensions (W x D x H) | 45 mm x 86 mm x 92.3 mm |
| Weight | 0.33 kg |
| EAN | 3471523009875 |
| Customs tariff number | 85364900 |
| Country of origin | France |
| Manufacturer standard delivery time | 8 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
| Net dimensions (W x H x D) | 45 x 92 x 86 mm |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
