Description

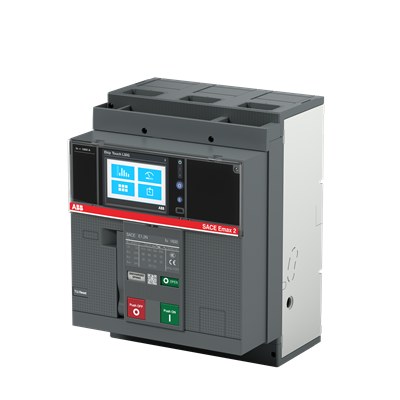

C.breaker sace emax2 e1.2b 1000 fixed three-pole with front terminals and solid-state release in ac ekip/hi-touch-lsi r 1000 fitted with: 4 auxiliary contact and c.breaker in position open-closed. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Number of poles | 3P |
|---|---|
| Current type | AC |
| Product type | Air Circuit Breaker |
| Version | F |
| Electrical durability | Ue =< 440 V 8000 cycle; Ue = 500 … 690 V 8000 cycle |
| Mechanical durability | 20000 cycle |
| Width (net) | 210 mm |
| Height (net) | 296 mm |
| Depth (net) | 183 mm |
| Net weight | 14 kg |
| EAN | 8015644746384 |
| Customs tariff number | 85362090 |
| Rating | R 1000 |
| Connecting capacity | 1000 mm² |
| Electrical operating rate | 30 cycles per hour |
| Mechanical operating rate | 60 cycles per hour |
| Landfill validation | UL 2799 Zero Waste To Landfill Validation available |
| Recyclability | Design for Closing Resource Loops – Standard EN45555 – 77.6 % |
| Country of origin | Italy |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
