Description

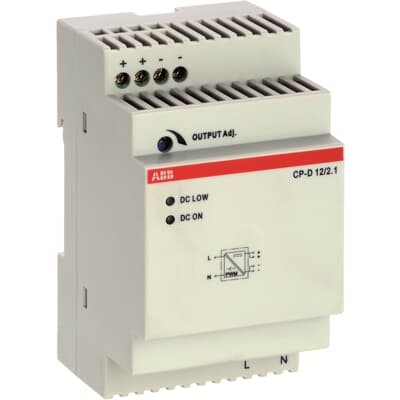

The CP-D 12/2.1 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 25 W, rated output current is 2.1 A at an output voltage of 12 V DC. The output voltage is adjustable within a range of 12 to 14 V DC. The power supply provides a U/I output characteristic. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Switch mode power supply |
|---|---|
| Input Voltage (Uin) | 90 … 264 V AC; 120 … 375 V DC |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Frequency Limits | 47 … 63 Hz |
| Characteristic of Output | U/I Characteristic Curve |
| Rated Output Power | 25 W |
| Output Power | 25 W |
| Rated Output Voltage | 12 V DC |
| Output Voltage (Uout) | 12 V DC; 12 … 14 V DC |
| Rated Output Current | 2.1 A |
| Output Current | 2.1 A |
| Output Current Maximum (Iout) | 2.1 A |
| Rated Impulse Withstand Voltage (Uimp) | Input Circuit / Output Circuit 3 kV |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 300 V; Input Circuit / PE 300 V; Output Circuit / PE 50 V |
| Degree of Protection | Housing IP20; Terminals IP20 |
| Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 0.2 … 2.5 mm²; Rigid 0.2 … 2.5 mm² |
| Connecting Capacity Output Circuit | Flexible with Ferrule 0.2 … 2.5 mm²; Rigid 0.2 … 2.5 mm² |
| Wire Stripping Length | Input Circuit 7 mm; Output Circuit 7 mm |
| Minimum Mounting Distance | 25 mm (conductive board and same-type device, horizontal/vertical) |
| Mounting Position | 1 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm) acc. to IEC 60715; TH35-7.5 (35 x 7.5 mm) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.107.1 (list truncated on page) |
| Product Net Width | 53 mm |
| Product Net Height | 91 mm |
| Product Net Depth/Length | 57.5 mm |
| Product Net Weight | 0.196 kg |
| Number of Phases | 1-phase |
| Tightening Torque | Input Circuit 0.7 N·m; Output Circuit 0.7 N·m |
| Recommended Screw Driver | PH1 |
| Min Order Qty | 1 piece |
| Customs Tariff No. | 85044095 |
| EAN | 4016779661218 |
| Breadcrumb | Home > 1SVR427043R1200 |
| Not_shown_rows | efficiency, hold-up time, number of outputs, ambient/operating temperature |
| Country of origin | Taiwan |
| Customs tariff number | 85044095 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
