Description
Staircase time switches with off-delay are operated by push-buttons, which are often equipped with a glow lamp. The switch levers are designed for a glow lamp current of up to 150 mA and are therefore excellently suited for installations in multistorey buildings. The E 232-230 staircase lighting timer with off-delay has an electromechanical timer relay with synchronous motor drive, which ensures a high level of operational safety in any installation position. The time range can be set in 15-second increments from one to seven minutes. Can be reswitched after 30s. The multifunctional units of the E 232E-230 Multi 10 and E 232E-8/230 Multi 10 product series have 10 functions that can be set on the front of the unit. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Electronic switch |
|---|---|
| Reset Function | Push Button |
| Time Range | Stepless 0.5 … 20 min |
| Contact Material | silver-tin-oxide (AgSnO2) |
| Rated Voltage (Ur) | 240 V AC |
| Supply Voltage | 0.85 … 1.1 V |
| Maximum Control Current DC | 26 mA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 6 V·A |
| Rated Switching Capacity | 16 A ; 230 V AC |
| Power Watt | Filament Lamp 2300 W ; Fluorescent Lamp Compensated 2300 V·A ; Fluorescent Lamp Shunt Capacitive 1300 V·A ; Fluorescent Lamp Inductive 2300 V·A ; Halogen Lamp 2300 W |
| Control Supply Voltage | 230 AC V |
| Ballast Type | Electronic |
| Switch Type | Steadylight |
| Connection Mode and Capacity | 3 or 4 conductor operated automatically |
| Switch Off Warning Type | Flickering |
| Load Type | Universal and LED Retrofit ; LEDi/CFLi ; Incandescent Lamp ; Halogen Lamp, High Voltage ; Halogen Lamp, Low Voltage ; Fluorescent Lamp |
| Enclosure Material | Heat resistant, self-extinguishing thermoplast |
| Ambient Temperature | –25 … 50 °C |
| Product Net Width | 17.5 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 58 mm |
| Product Net Weight | 0.07 kg |
| EAN | 4016779654166 |

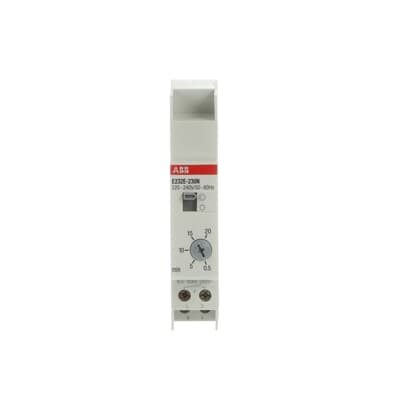

| Catalog Description | E232E-230N Staircase time switch |
| Minimum Switching Time | 0.02/0.05 s |
| Options Provided | Without Switch-Off Warning |
| Cable Cross-Section | Terminal 4 mm² ; Terminal 13 mm² |
| Maximum Lamp Load | LED Power > 2W 180 W ; LED Power < 2W 20 W |
| E-Number (Finland) | 3510147 |
| E-Number (Norway) | 1424300 |
| Unspsc | 39122208 |
| Country of origin | Germany |
| Customs tariff number | 85364900 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 10 |
| Product status (supplier data) | Active |
