Description

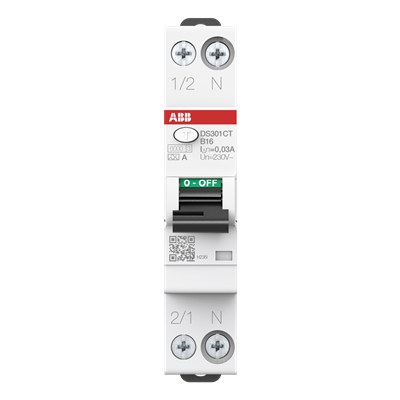

The DS301C series is a 1P+N RCBO in one module width for the protection of end user single-phase circuits against overload and short-circuit currents, protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection against indirect contacts and additional protection against direct contacts. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Type of Residual Current | Type A |
|---|---|
| Test Voltage (Ut) | 170 … 264 V |
| Dielectric Test Voltage | 2.5 kV |
| Rated Residual Breaking Capacity (IΔm) | EN 61009-1 6000 A | IEC 61009-1 4500 A |
| Power Supply Connection | Arbitrary |
| Contact Position Indication | Red ON / Green OFF |
| Number of Protected Poles | 1 |
| Number of Poles | 1P+N |
| Operating Characteristic | Instantaneous |
| Rated Cross-Section | 1 – Solid-Core 1 … 10 mm² | 4 – Multi-Wired 1 … 6 mm² |
| Wire Stripping Length | 10 mm |
| Tripping Characteristic | B |
| Rated Operational Voltage | acc. to IEC 60898-1 230 / 240 V AC |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (I<sub>n</sub>) | 16 A |
| Rated Residual Current | 30 mA |
| Rated Short-Circuit Capacity | 6 kA |
| Rated Frequency (f) | 50 Hz |
| Power Loss | Average per Pole 1.415 W | Phase Pole 2.11 W | Neutral Pole 0.72 W | Total 2.83 W |
| Overvoltage Category | III |
| Degree of Protection | IP20 | IP40 |
| Pollution Degree | 2 |
| Material Resource Reduction (wt. %) | Design for Reduced Resource Consumption – 45 % |
| Sustainable Material Content in Packaging (wt. %) | Recycled Cardboard – 71.18 % | Recycled Paper – 0 % |
| Position of Neutral Terminals | Right |
| Accessory Type | Please refer to the datasheet |
| Housing Type | Insulation group I – II, RAL 7035 |
| Screw Terminal Type | Failsafe Bi-directional Cylinder-lift Terminal |
| Actuator Material | Insulation Group II, Black, Sealable |
| Terminal Type | Screw Terminals |
| Actuator Type | Toggle |
| Ambient Air Temperature | Operation -25 … 55 °C |
| Reference Ambient Air Temperature | 30 °C |
| Mounting Type | DIN-Rail |
| Mounting Position | Any |
| Standards | IEC/EN 61009-1 | IEC/EN 61009-2-1 |
| Width in Number of Modular Spacings | 1 |
| Product Net Width | 17.6 mm |
| Product Net Height | 92 mm |
| Product Net Depth / Length | 68 mm |
| Product Net Weight | 110 g |
| Built-In Depth (<em>t<sub>2</sub></em>) | 17.6 mm |
| EAN | 8012542362852 |
| Catalog Description | Residual Current Circuit Breaker with Overcurrent Protection DS301CT – 1P+N – 30 mA – 16 A – B – Type A – Instantaneous |
| Carbon Footprint | Full Lifecycle 16 kg CO₂ eq |
| Improved Energy Efficiency for Customers | Product Efficiency – Product considered more energy-efficient compared to similar product on market or older products from the same line |
| Energy Limiting Class | 3 |
| Electrical Endurance | 7000 cycle |
| Mechanical Endurance | 7000 cycle |
| Number of Modular Spacings per DIN Rail | 1 |
| Fault Indication | Blue Flag Below Toggle |
| Tightening Torque | 1.2 N·m |
| Accessories Available | Yes |
| Connecting Capacity | Screw Clamp / Rigid 113 … 10 mm² | Screw Clamp / With Insulated Ferrule 1 … 6 mm² | Screw Clamp / Without Insulated Ferrule 1 … 6 mm² | Screw Clamp / Flexible 1 … 10 mm² |
| Environmental Conditions | 28 cycles | |with 55 °C / 90-96 % | |and 25 °C / 95-100 % |
| Resistance to Vibrations | 20 Cycles with Load 0.8 In: 1g or 0.1mm 5…150…5 Hz |
| Resistance to Shock acc. to IEC 60068-2-27 | 25g 2 shocks 13 ms |
| EPLAN Data | 9AAF618241_EPLAN |
| E-Number (Norway) | 1682981 |
| E-Number (Sweden) | 2160203 |
| Mechanical Drawings | 9AKK107991A9486 | 9AKK107991A9487 |
| Unspsc | 39121601 |
| Object Classification Code | F |
| Etim9 | EC000905 – Earth leakage circuit breaker |
| Etim10 | EC000905 – Earth leakage circuit breaker |
| Recyclability Rate of the Product acc. to EN45555 | Design for Closing Resource Loops – Standard EN45555 – 79.18 % |
| ABB Site Meeting Group Waste To Landfill Target | No non-hazardous waste is sent to a landfill | UL 2799 Zero Waste To Landfill Validation available |
| Extended Product Lifetime | Product Durability is Enhanced |
| Country of origin | Italy |
| Customs tariff number | 85363010 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
