Description

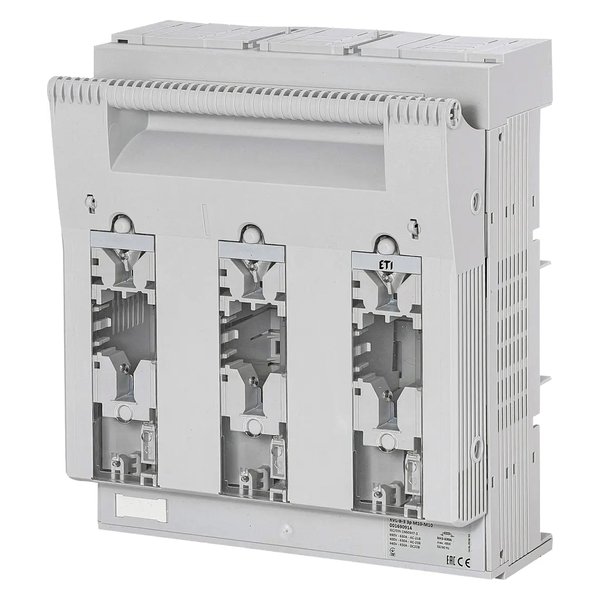

ETI KVL-B-3 3p M10-M10 — Fuse Switch Disconnector. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | ETI |
|---|---|
| Model / Type | KVL-B-3 3p M10-M10 |
| Article No. (MPN) | 001690914 |
| Product Category | Circuit Breakers |
| Size | NH3 |
| Voltage type | AC/DC |
| Tightening torque | 35-30 Nm |
| Function | Fuse switch disconnector |
| IP rating | IP20 |
| Type of installation | Busbar mounting |
| Utilization category | AC-23B, AC-22B, AC-21B, DC-22B, DC-21B |
| Overvoltage category | III |
| Rated frequency | 40/60 Hz |
| Max. altitude | ≤ 2000 m |
| Rated conditional short-circuit current Inc | 120 kA |
| Ambient temperature | -25/55 °C |
| Rated insulation voltage | 800 V |
| Rated short-time withstand current Icw at 1s | 15 kA |
| Power dissipation | 86 W |
| Max. rated operational voltage (AC) | 690 V |
| Terminal screw | M10 |
| Link | 48 W |
| Rated impulse withstand voltage Uimp | 8 kV |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised ETI dealer. All parameters are taken from the official manufacturer documentation.
