Description

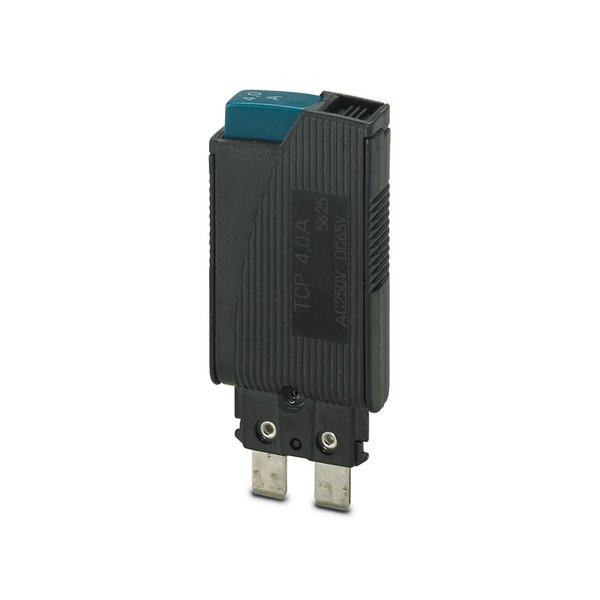

Phoenix Contact 0712259 — TCP 4A. Manufacturer designation: TCP 4A – Thermal device circuit breaker – 0712259. New original part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Manufacturer | Phoenix Contact |
|---|---|
| Article No. (MPN) | 0712259 |
| Product Category | Circuit Breakers |
| Product type | Thermal device circuit breakers |
| Type | Male |
| Overvoltage category | II |
| Fuse type | Automatic device |
| Fuse | Slow-blow |
| Rated voltage | 250 V AC |
| Rated surge voltage | 2.5 kV |
| Insulation resistance R iso | > 100 MΩ (500 V DC) |
| Tripping method | T (thermal) |
| Device resistance | 0.07 Ω |
| Rated short-circuit switching capacity I cn | 24 A (250 V AC / 65 V DC) |
| 40 A (30 V DC) Short-circuit switching capacity | 2000 A (250 V AC / UL 1077) |
| 2000 A (72 V DC / UL 1077) Dielectric strength | 3000 V AC (Actuation area) |
| Nominal current | 4 A |
| Nominal voltage | 250 V AC |
| 65 V DC Connection method | pluggable |
| Dimensional drawing Width | 8.2 mm |
| Height | 24.4 mm |
| Height NS 35/7,5 | 55 mm |
| Depth | 44.5 mm |
| Color | black (RAL 9005) |
| Condition | New & original |
| Availability | On request |
Independent distributor — not an authorised Phoenix Contact dealer. All parameters are taken from the official manufacturer documentation.
