Description

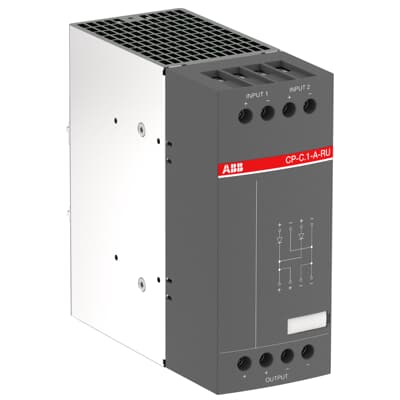

The CP-C.1-A-RU-C is a redundancy unit for CP-C.1 range power supplies. The input voltage range is 10 – 58 V DC. This unit, with 2 inputs / channels each up to 20 A and an output up to 40 A, provides true redundancy by 100 % decoupling of two parallel connected CP-C.1 range power supplies. ATEX and IECEx approvals are available to be used in hazardous area applications. New original ABB part, traceable to the manufacturer. Availability and price on request.
Technical Specifications
| Function | Redundancy unit |
|---|---|
| Input Voltage (Uin) | 10 … 58 V DC |
| Rated Frequency (f) | DC |
| Rated Output Voltage | 12 … 48 V DC |
| Output Voltage (Uout) | 10 … 58 V DC |
| Rated Output Current | 40 A |
| Output Current | 60 A |
| Rated Insulation Voltage (Ui) | Input Circuit / Output Circuit 60 V |
| Degree of Protection | Housing IP20; Terminals IP20 |
| Pollution Degree | 2 |
| Connecting Capacity Input Circuit | Flexible with Ferrule 2.5-10 mm²; Flexible 2.5-10 mm²; Rigid 2.5-16 mm² |
| Connecting Capacity Output Circuit | Flexible with Ferrule 2.5-10 mm²; Flexible 2.5-10 mm²; Rigid 2.5-16 mm² |
| Wire Stripping Length | Input Circuit 10 mm; Output Circuit 10 mm |
| Min Mounting Distance | 25 mm (all four sides) |
| Mounting Position | Position 1; 7 |
| Mounting on DIN Rail | TH35-15; TH35-7.5 (IEC 60715) |
| Standards | IEC/EN 63000, 60079-0, 60079-7, 61000-6-2, 61000-6-3, 61204, UL 61010-2-201, UL 61010-1, IEC/EN 61010-1 |
| Product Net Width | 56.4 mm |
| Product Net Height | 129.4 mm |
| Product Net Depth/Length | 136 mm |
| Product Net Weight | 1.04 kg |
| Tightening Torque | Input Circuit 1.2 N·m; Output Circuit 1.2 N·m |
| Recommended Screw Driver | Input / Output Circuit 0.8 x 4 |
| Min Order Qty | 1 piece |
| Customs Tariff No. | 85363030 |
| EAN | 4013614523748 |
| Breadcrumb | Home > 1SVR360060R2001 (no readable series breadcrumb shown) |
| Not_shown_rows | output power, efficiency, hold-up time, number of outputs, ambient temperature (redundancy unit, not a PSU) |
| Country of origin | China |
| Customs tariff number | 85044083 |
| Manufacturer standard delivery time | 5 days |
| Packaging unit | Box x 1 |
| Product status (supplier data) | Active |
Independent distributor — not an authorised ABB dealer. All technical parameters are taken verbatim from the official ABB product data for this exact order code; packaging, customs and delivery data come from the supplier list entry for the same code.
